Machining Capabilities
Multi-axis CNC Swiss turning, precision milling, Wire EDM, and full secondary operations — all under one roof.
CNC Swiss Turning
Core Competency · ~80% of Shop Capacity
Swiss turning (sliding headstock / guide bush technology) is the foundation of Sze Loi's precision output. The guide bush supports the workpiece directly at the cutting zone, virtually eliminating deflection even in slender, long-reach geometries. The result: exceptionally tight tolerances on features that conventional lathes simply cannot hold.
Our Swiss turning ops are capable of completing complex parts — turned, milled, drilled, threaded, and back-worked — in a single fixturing. This eliminates secondary setups, reduces handling risk, and dramatically compresses lead times for batch sizes from single prototypes through high-volume production runs. Parts Gallery showcases a wide range of parts with intricate features that we have encountered over the years, highlighting the depth of our unique capabilities.
Swiss Turning Machine Fleet
| Machine | Type | Axes | Bar Capacity | Key Feature |
|---|---|---|---|---|
| Citizen Cincom L25 | Swiss CNC Lathe | 7-axis | Ø25mm | Live tooling, sub-spindle, simultaneous operations |
| Citizen Cincom L20 (5M7) | Swiss CNC Lathe | 7-axis | Ø20mm | High-speed cycle time, complex geometries |
| Citizen Cincom L16 (Type VI) | Swiss CNC Lathe | 5-axis | Ø16mm | Precision small-diameter, medical & dental grade |
| Citizen Cincom B12 (Type I) | Swiss CNC Lathe | 3-axis | Ø12mm | High-tolerance short-run and prototype production |
| Sze Loi TL32 | Gang-type CNC Swiss Lathe | 5-axis | Ø32mm | Larger diameter capability, live cross & back tooling, heavy-duty runs |
| Sze Loi TL25 | Gang-type CNC Swiss Lathe | 5-axis | Ø25 | Mid-volume, live cross & back tooling, heavy and stable cut |
| Sze Loi TL20 | Gang-type CNC Swiss Lathe | 5-axis | Ø20mm | Mid-volume, live cross & back tooling, rapid changeover |
| Sze Loi ET15 | Gang-type CNC Swiss Lathe | 3-axis | Ø15mm | High-volume, fast machine cycle runs |
Swiss Turning Capability Specifications
| Parameter | Specification |
|---|---|
| Bar stock diameter range | Ø03.0mm – Ø32mm (Volume Production) Above Ø32mm (Opeators Dependent) |
| Typical tolerance | ±0.005mm (±0.0002") |
| Surface finish achievable | Ra 0.4µm |
| Thread types | Metric, UNC, UNF, NPT, BSPP, ACME, custom |
| Live tooling | Yes — L25, L20, TL32, TL25, TL20 |
| Sub-spindle | Yes — L25, L20, TL32 |
Why Swiss Turning?
- Guide bush supports the workpiece at the cutting zone — eliminates deflection on slender parts
- Single-pass complete machining reduces setups, handling, and contamination risk
- Sub-spindle back-working machines rear features simultaneously — no part re-chucking
- Ideal for medical, aerospace, and electronics where multi-feature precision is non-negotiable
- 45 years of Swiss turning expertise since 1980 — deep process knowledge in hard and exotic materials

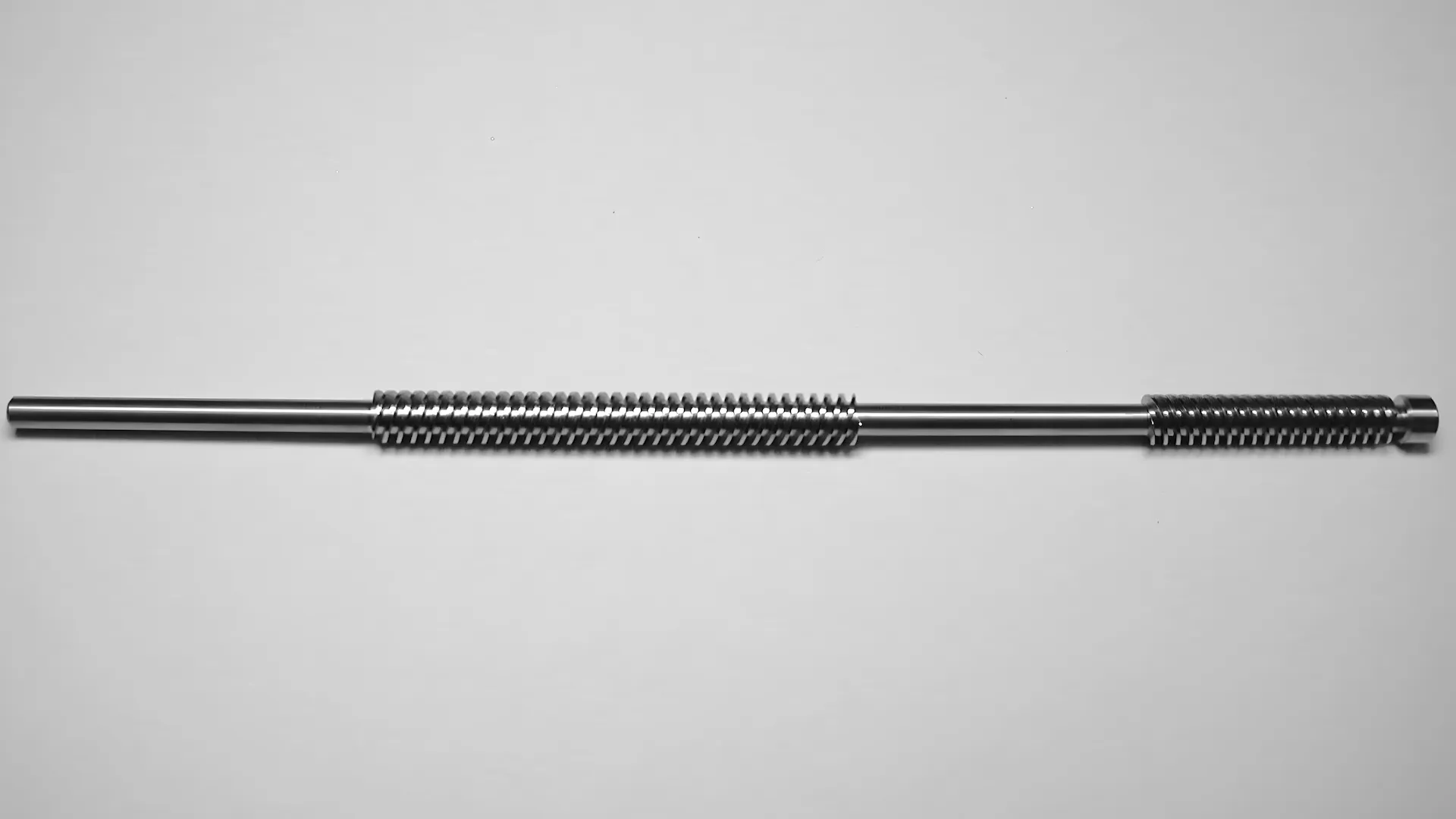

Product Showcase: Left & Right Handed, Dual-Start ACME Screw on 303 Stainless Steel
Dual-Start ACME Screw, Left & Right Handed Threads on a 130mm long 303 Stainless Steel
For fast acting, precise locator in rapid fabrication applications.
CNC Turning & Milling
Auxiliary Machining · Tooling & Complex Profiles
Beyond Swiss turning, Sze Loi operates dedicated CNC turning centres and multi-axis milling machines for components outside the Swiss range — larger diameters, prismatic parts, tooling jigs, and mid-volume machining work.
Our Wire EDM cells are particularly valuable for tight-tolerance internal profiles, cutting slots, intricate contours in hardened tool steel, and producing precision punch and die components. All milling work integrates with our in-house inspection and deburring lines before delivery.
CNC Turning, Milling & EDM Equipment
| Machine | Type | Primary Applications |
|---|---|---|
| Brother TC-S2Z | CNC Tapping Centre | High-speed tapping, drilling, light milling on prismatic parts |
| Dyna Myte 2400 | CNC Vertical Milling Centre | Jig & fixture fabrication, complex contour milling |
| CNC Mill (Various) | CNC Vertical Milling Centre | Boring, drilling, facing, slot milling, tooling production |
| Wire EDM | Wire Electrical Discharge Machine | Tight-tolerance internal profiles, punch & die sets, hardened steel cutting, intricate slot & contour work |
Milling & EDM Capabilities
2D & 3D Profile Milling
Complex contour work, pocket milling, and surface profiling on aluminium, steel, and brass billets.
Boring & Drilling
Precision bore sizing, deep-hole drilling, and reaming for tight fits and press-fit housings.
Wire EDM Cutting
Hardened steel profiles, punches, dies, and intricate internal geometries unachievable by conventional milling.
Tooling & Jig Fabrication
In-house production of workholding fixtures, inspection gauges, and custom tooling for Swiss turning lines.
Tapping & Threading
High-speed rigid tapping across Metric, UNC, UNF, BSP thread forms in all common material grades.
CAM-Driven Production
Full CAM programming from STEP/IGES/DXF files. Rapid first-article turnaround within 5–7 business days.

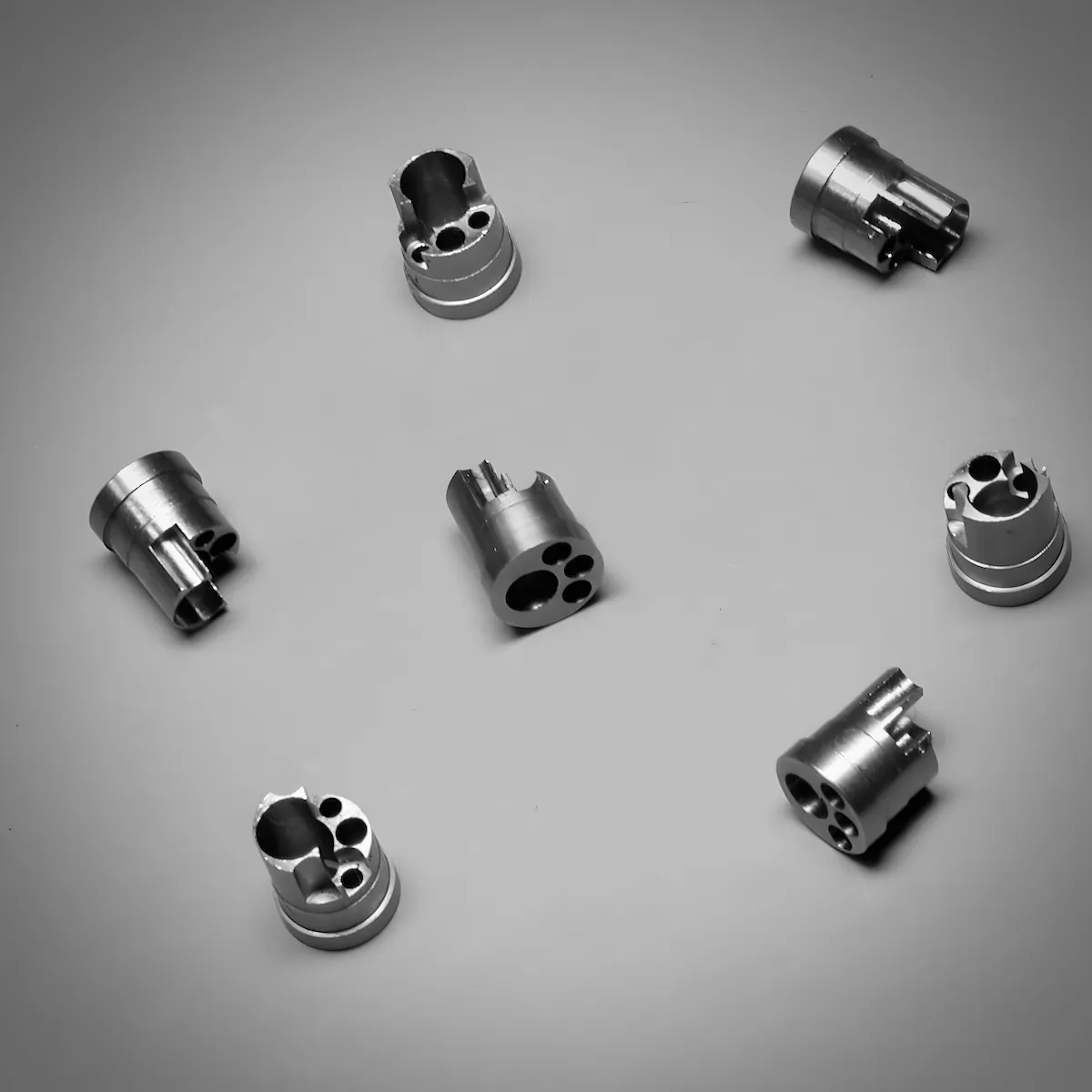

Product Showcase: Multi-Step Mill & Bore on a Ø5.0mm 303 Stainless Steel Part
Multi-Step Mill & Bore for eccentric holes with H8 inner tolerances.
Precision toolings and skilled operators are essential for completing this intricate part with 2nd Ops and maintaining high tolerances and standards.

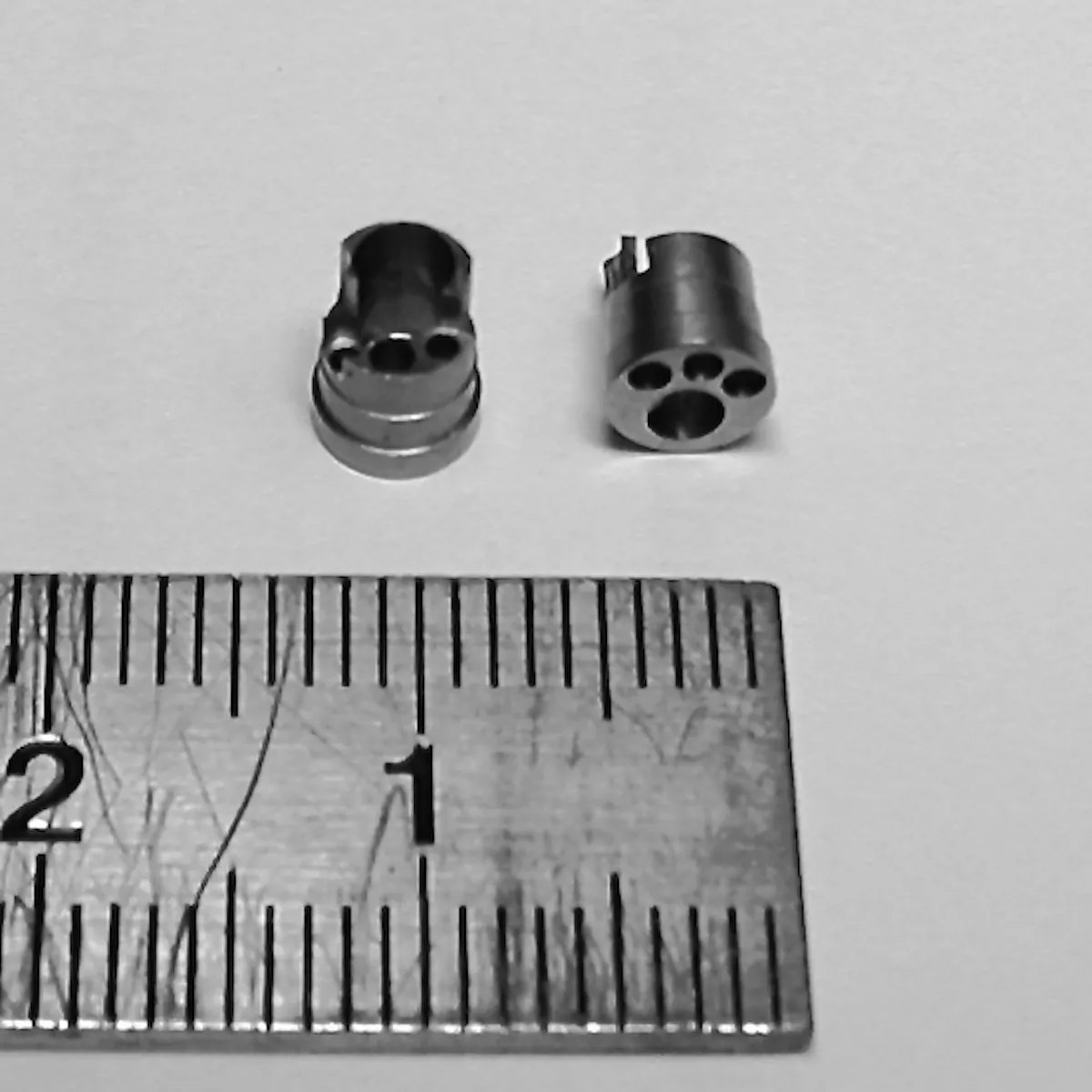

In comparison with a steel ruler
The part was too tiny to get in focus.
Secondary Operations
In-House & Vendor-Coordinated Post-Processing
Sze Loi offers a comprehensive range of secondary operations — all coordinated under a single purchase order. From vibratory deburring to precision inspection, sub-assembly, and surface finishing co-ordination, we handle the downstream steps so your parts arrive ready to use.
Tumbling & Deburring
Vibratory barrel tumbling for batch deburring of Swiss-turned parts. Removes micro-burrs and sharp edges without dimensional impact. Appropriate for medical, electronics, and high-precision assemblies where burr-free surfaces are a design requirement.
- Vibratory tumbling (wet and dry media)
- Hand deburring for complex geometries
- Edge breaking to customer-specified radius or chamfer
In-Process Inspection & Final QC
Full in-process and final inspection on every production run. Dimensional records generated per batch. First-article inspection report (FAIR) available on request. Equipment includes profile projectors, digital measuring systems, electronic micrometers, and go/no-go gauge sets.
- First-article inspection report (FAIR) on request
- Statistical process control (SPC) data available
- Dimensional records archived per batch
- Go/no-go gauging for critical features
Assembly & Sub-Assembly
Light assembly and sub-assembly services for multi-component machined assemblies. We consolidate multiple machined parts into customer-specified sub-assemblies, reducing your internal handling steps and inventory tracking overhead.
- Press-fit and screw-fastened sub-assemblies
- O-ring and seal insertion
- Pin and dowel installation
- Kitting and bundling per customer BOM
Packaging & Labelling
Parts are packaged to customer specifications — from bulk poly bags to individually wrapped and labelled parts on custom carriers or trays. ESD-safe packaging available for electronics components. Export packaging with full documentation for customs clearance.
- Bulk, semi-bulk, and individually packaged options
- ESD-safe packaging for electronics parts
- Custom tray and carrier solutions
- Export documentation and commercial invoice preparation
Surface Finishing Co-ordination
Sze Loi maintains long-standing relationships with approved surface finishing vendors in our region. We co-ordinate and manage plating, anodising, heat treatment, and coating on your behalf — all delivered under a single purchase order.
- Electroplating: zinc, nickel, chrome, gold, tin, silver
- Anodizing: Type II (standard) and Type III (hard coat)
- Electroless nickel (including Teflon-impregnated)
- Passivation and black oxide
- Heat treatment: hardening, stress relief, annealing
- Electropolishing for stainless steel
Ready to Start?
Need to know if your part is machinable?
Share your drawing — STEP, IGS, DWG, or PDF — and we'll review your geometry, recommend the optimal process, and provide a detailed quotation within 24 hours.
